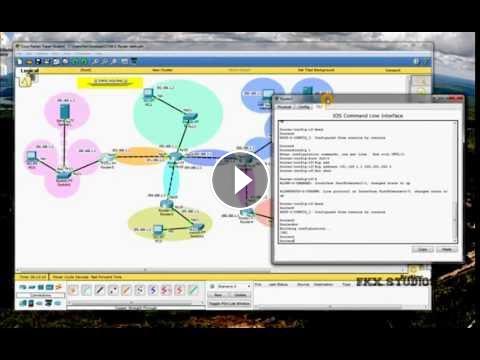

Configure Static Routing in Packet Tracer- CCNA

Setting up Routing Tables in Routers


ROUTER 5

ip route 192.168.1.0 255.255.255.0 191.168.1.2
ip route 200.168.1.0 255.255.255.0 191.168.1.2
ip route 195.168.1.0 255.255.255.0 191.168.1.2
ip route 198.168.1.0 255.255.255.0 191.168.1.2


Router 1 (middle)

ip route 190.168.1.0 255.255.255.0 191.168.1.1
ip route 200.168.1.0 255.255.255.0 193.168.1.2
ip route 195.168.1.0 255.255.255.0 194.168.1.2
ip route 198.168.1.0 255.255.255.0 193.168.1.2



Router 2

ip route 190.168.1.0 255.255.255.0 194.168.1.1
ip route 192.168.1.0 255.255.255.0 194.168.1.1
ip route 200.168.1.0 255.255.255.0 194.168.1.1
ip route 198.168.1.0 255.255.255.0 194.168.1.1




Router 3

ip route 198.168.1.0 255.255.255.0 197.168.1.2
ip route 192.168.1.0 255.255.255.0 193.168.1.1
ip route 195.168.1.0 255.255.255.0 193.168.1.1
ip route 190.168.1.0 255.255.255.0 193.168.1.1



Router 4


ip route 192.168.1.0 255.255.255.0 197.168.1.1
ip route 200.168.1.0 255.255.255.0 197.168.1.1
ip route 195.168.1.0 255.255.255.0 197.168.1.1
ip route 190.168.1.0 255.255.255.0 197.168.1.1
